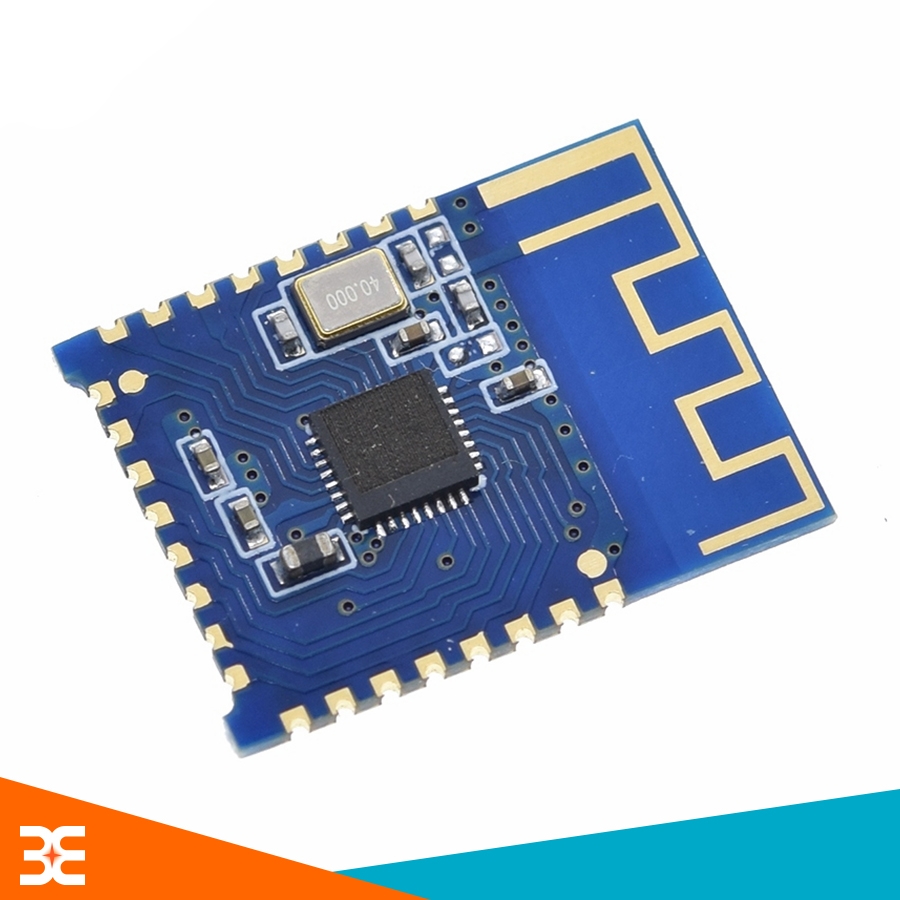

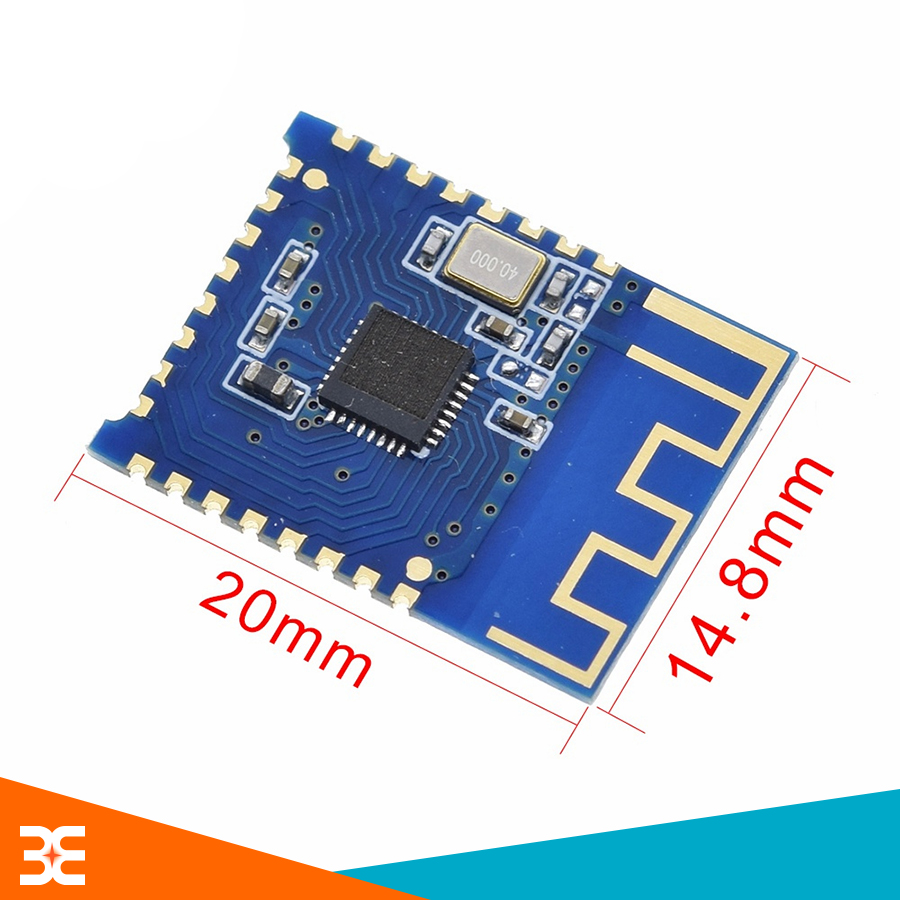

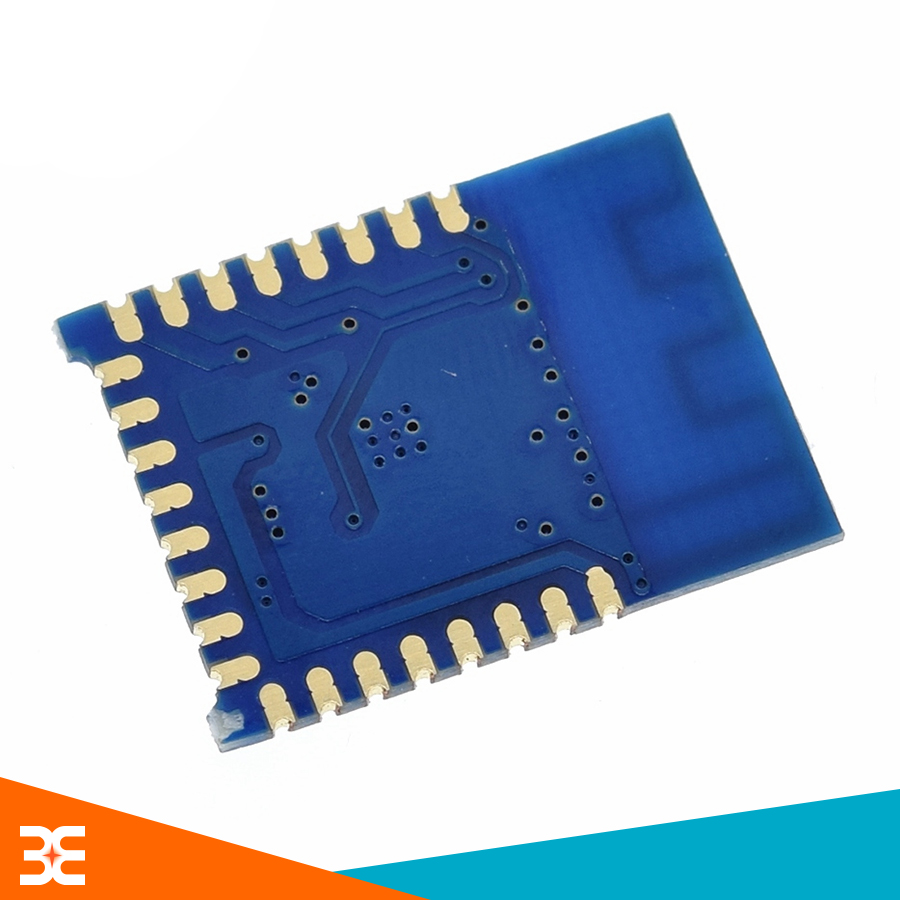

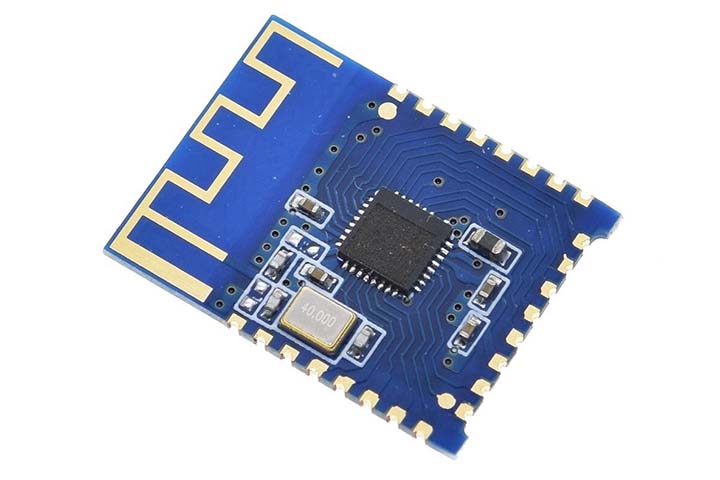

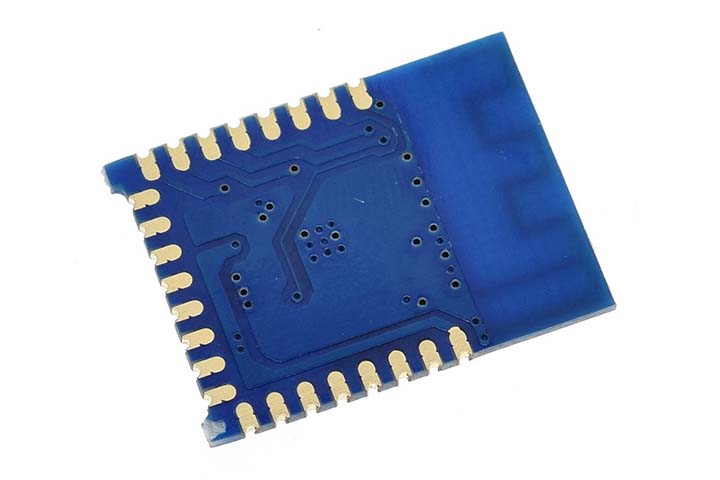

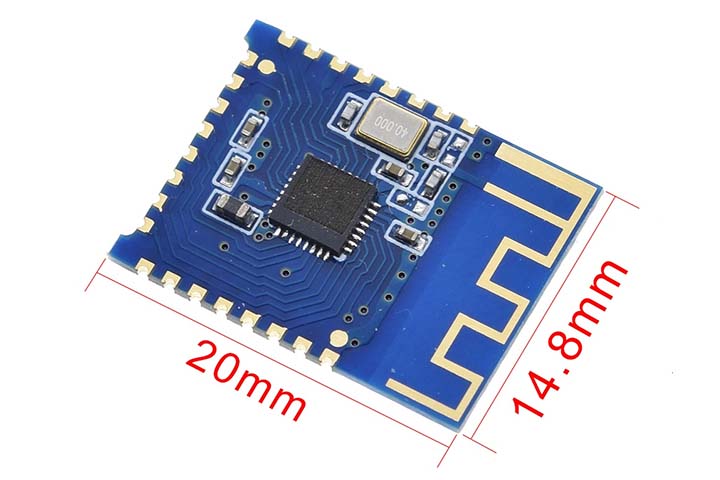

Module JDY-23 Bluetooth 5.0 CC2541

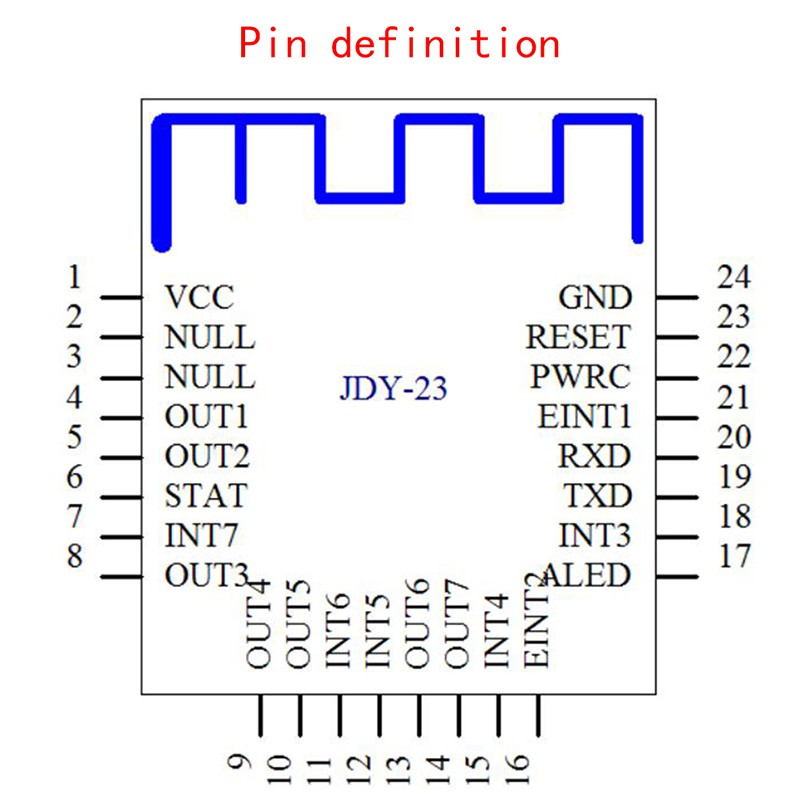

  Pin #

  Features

  Description

  1

  VCC

  Power supply (1.8-3.6 V)

  2

  NULL

  No

  3

  NULL

  No

  4

  OUTPUT1

  IO1 output pin (high and low level control APP support)

  5

  OUTPUT2

  IO2 output pins (support APP control of high and low levers)

  6

  STAT

  The status of the pin connection, connected high, not connected to low

  7

  INPUT7 / PWM4

  INPUT7 mode: For the input pin, the APP can read the status of this pin.

   PWM mode: PWM4 output pin, APP able to control PWM4

   Pulse width

   The default value is: INPUT7 mode

  8

  OUTPUT3

  IO3 output pin (high and low level control APP support)

  9

  OUTPUT4

  IO4 output pin (high and low level control APP support)

  10

  OUTPUT5

  IO5 output pin (high and low level control APP support)

  11

  INPUT6 / PWM3

  INPUT6 mode: For the input pin, the APP can read the status of this pin.

   PWM mode: PWM3 output pin, APP able to control PWM3

   Pulse width

   The default value is: INPUT6 mode

  12

  INPUT5 / PWM2

  INPUT5 mode: For the input pin, the APP can read

   The status of this pin.

   PWM mode: PWM2 output pin, APP able to control PWM2

   Pulse width

   The default value is: INPUT5 mode

  13

  OUTPUT6

  IO6 output pins (high and low level control APP support)

  14

  OUTPUT7

  IO7 output pin (high and low level control APP support)

  15

  INPUT4

  For the input pin, the APP can read the status of this pin.

  16

  EINT2

  Input pin interrupt (in connected state, press to actively send IO status to APP)

  17

  ALED

  Pin transmission indicator

  18

  INPUT3 / PWM1

  INPUT3 mode: For the input pin, the APP can read the state of thi pin.

   PWM mode: PWM1 output pin, APP able to control PWM1

   Pulse width

   The default value is: INPUT3 mode

  19

  TXD

  Serial output pin (TTL level)

  20

  RXD

  Serial input pin (TTL level)

  21

  EINT1

  Input pin interrupt (in connected state, press to actively send IO status to APP)

  22

  PWRC

  Sleep wake-up pin, active low

   In the connected state, the AT command can be pulled    Low through the PWRC pin.

  23

  RTD

  Reset pin, active low

  24

  GND

  Power land

Sequence

  Instructions

  Effect

  Master

         /

    Slave

  Default

  1

  AT + VER

  Version number

  S

  JDY-23-V2.1

  2

  AT + RST

  Soft reset

  S

  -

  3

  AT + DISC

  Unplugged command

  S

  -

  4

  AT + STAT

  00

  -

  -

  5

  AT + MAC

  MAC address

  S

  -

  6

  AT + BAUD

  Baud Rate

  S

  9600

  7

  AT + SLEEP

  Sleep

  S

  8

  AT + NAME

  Transmission name

  S

  JDY-23

  9

  AT +

   STARTEN

  Starting sleep or wake up

  S

  0

  10

  AT + ADVIN

  Transmission interval

  S

  1 (200 mS)

  11

  AT +

   HOSTEN

  Slave mode or IBEACON work mode

  S

  0

  12

  AT + IBUUID

  UUID of IBEACON

  S

  FDA50693A4E24FB1AFCFC6EB07647825

  13

  AT + BIG

  PRINCIPAL of IBEACON

  S

  10

  14

  AT +

   MINORS

  IBEACON of MINORS

  S

  7

  15

  AT + IBSING

  Calibration signal at 1 meter

  -

  0x32

  16

  AT + ALED

  LED indicator switch transmission

  -

  1

  17

  AT + IBPWR

  IBEACON SINGING value

  S

  50

  18

  AT +

   DEFAULT

  Reset

  S

  -

  19

  AT + POWR

  Transmission power

  S

  8

  20

  AT + ENLOG

  Serial switch output LOG

  S

  0

  21

  AT + MTU

  Set the serial port for the APP to send a long number of packets

  S

  1

  22

  AT + BATT

  Battery set

  S

  0
